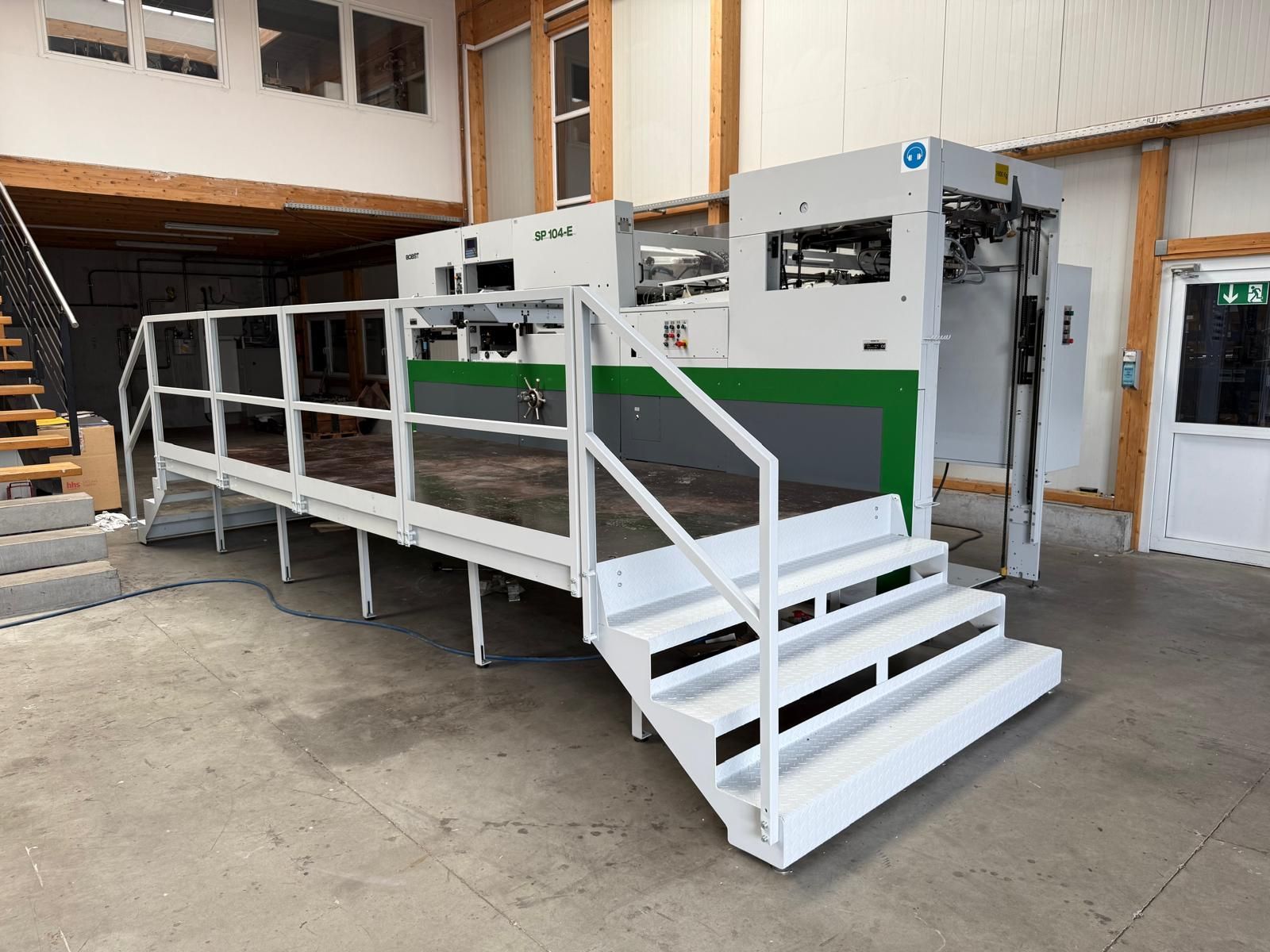

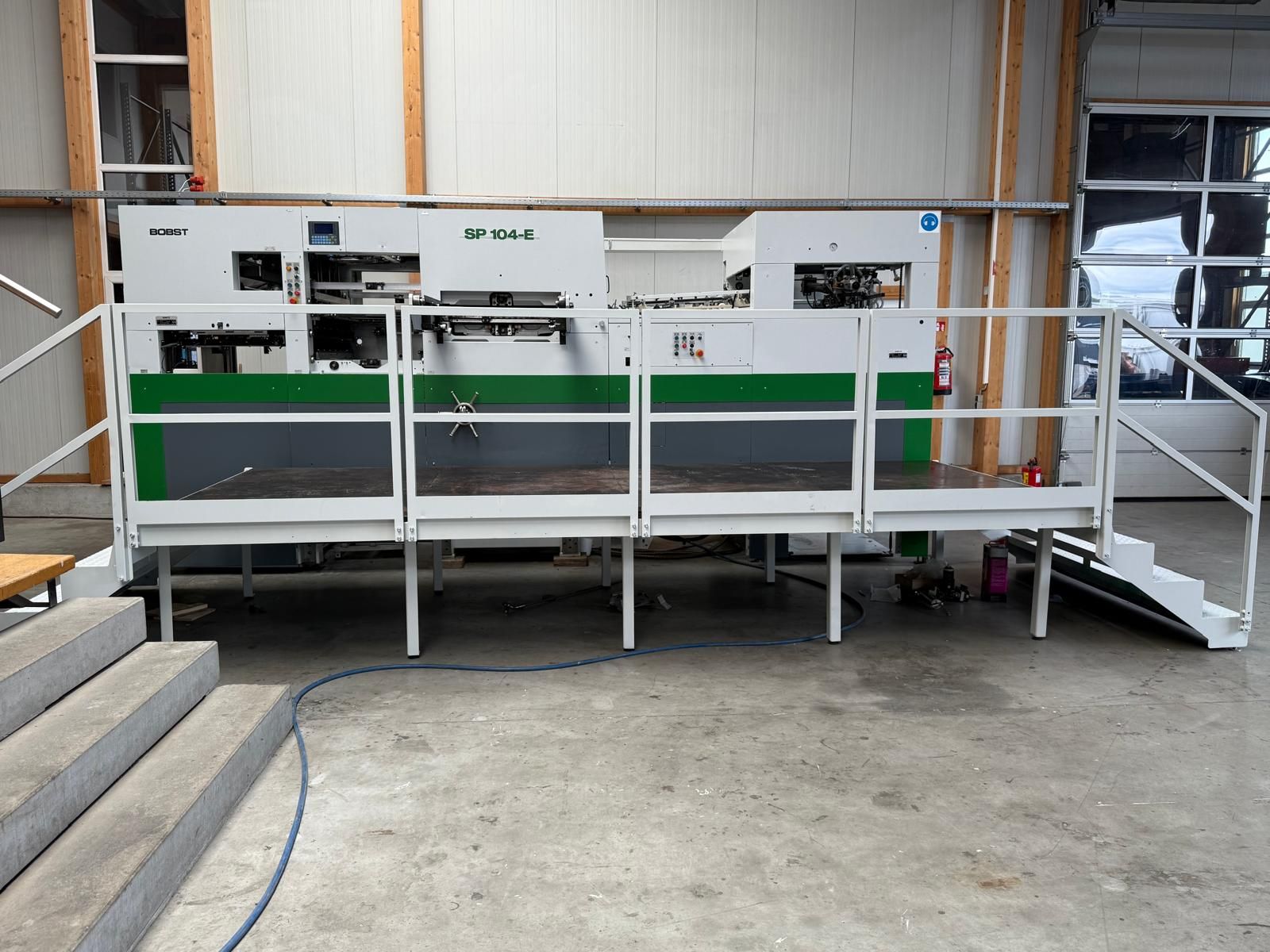

20.003 Bobst SP 104 E

Manufacturer: Bobst
Machine type: Die cutting machine
Model: SP 104 E

Year of construction: 2002
Location: D-75433 Maulbronn, nearest airport Stuttgart
Sheet size: max. 1040 x 740 mm, min. 400 x 350 mm
Equipment: Stripping station, centerline, non-stop feeder, non-stop delivery with apron, pull mark left, push mark right, gripper edge separation, 41cm elevated, production hours: 25.000, Bobst-Cube control, micrometer adjustment, electric double sheet control,1 upper die cutting frame,1 die cutting plate 4 mm, 1 upper stripping frame, 1 lower stripping frame, max. machine speed 7000 sheets/hour, max. pressure 250 tons, processable materials: paper min. 80g/m², cardboard up to max. 2000g/m², corrugated cardboard up to 4mm

Reconditioning 2026: repainted

Others: After arrangement machine can be inspected in running condition

Available: after arrangement
Delivery: FCA / Free carrier
